School Timer

School-Factory-Timer

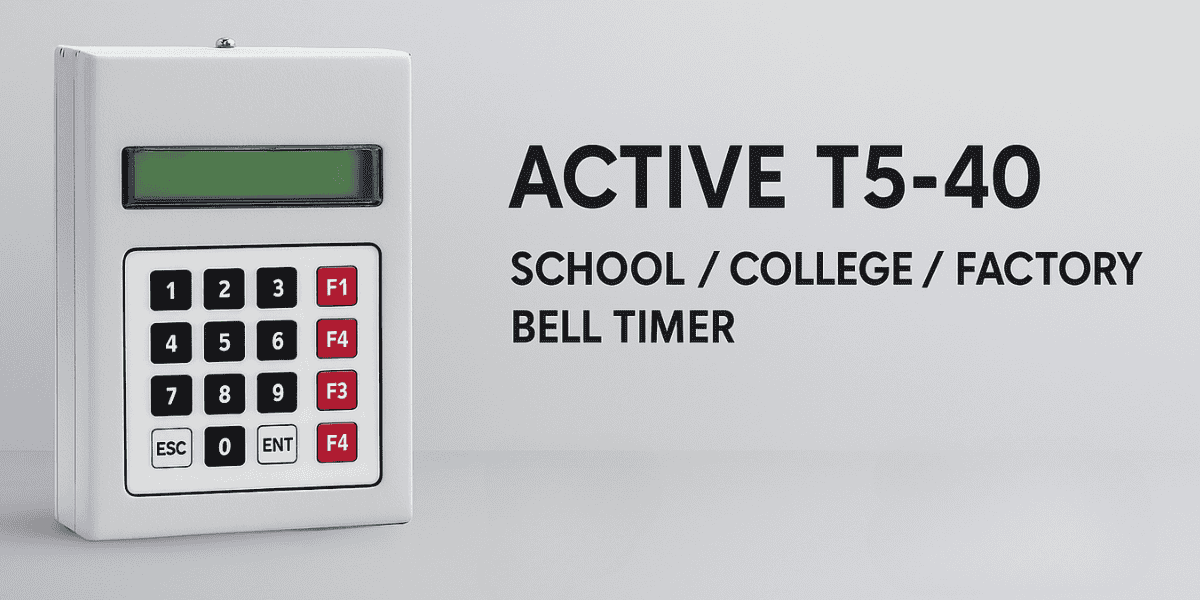

Active-T5-40 School, College, Factory Programmable Automatic Schedule Timer

Programmable Automatic Schedule Timer

5 Program 40 Time Schedules In Each Program

Selection of Particular Program at Desired Days

Changeable User Password

Automatic Bell Ringing Based On Programming

External Light On/Off Time Can Be Modified

Provision For Time Management

Manual On/Off for Bell & Light

On Board Keypad With 32 Bit Lcd

Micro-Controller Based System

Communication for Software Rs232

Solution

School Timer was designed to meet the needs for an easy programmable school bell timer, to activate electric gong bell or sirens on factory floors to alert shift changes or breaks, or any similar application where an external device needs to be triggered at a specific time on a daily or weekly schedule.

Active T5-40 is microcontroller equipment which can be used for school, colleges and factories for avoiding manual interface for ringing the existing siren or a gang bell.

POWER SUPPLY
Maximum Power Consumption 24 Watts
DC/AC Main Supply 12-24 V/2 Amps
REAY-NORMALLY CLOSED
Max Output Volt / Current- Bellout 240 V/5 A
Max Output Volt / Current- Appl 240 V/5 A
Max Output Volt / 5 V/100 MA
Current - For Audio Player
ENVIRONMENTAL
Environment Light Industrial
Max Humidity 95% Non-Condensing
Operating Temperature 0°C To 45°C
Storage Temperature -20°C~+60°C
PHYSICAL
Colour Grey Coloured Metal Box
Control Panel Dimensions(mm) (HXWXL)= 135 X 35 X 90
Weight 420g
